Decoding How Does LED Screen Work: A Comprehensive Overview

Have you ever marveled at those vibrant LED display billboards lighting up Times Square or the crystal-clear indoor LED screens at your local mall? I’ve spent years studying these technological marvels, and I’m excited to share how they actually work. Understanding the technology behind LED screens can help you make better purchasing decisions and appreciate the complexity behind those stunning visuals you see every day.

Choosing the wrong LED display can lead to poor visibility, wasted budgets, or frustrating compatibility issues that leave your audience squinting at dim images or distorted colors. In this guide, I’ll decode exactly how does LED screen work at the fundamental level, from tiny diodes to massive outdoor LED wall screens.

How Does LED Screens Work: The Science Behind the Technology

How LEDs Emit Light

At the heart of every LED screen are light-emitting diodes (LEDs) – tiny semiconductor devices that convert electrical energy directly into light. Unlike traditional bulbs that use heated filaments, LEDs use a process called electroluminescence.

When an electric current passes through the semiconductor material (typically gallium arsenide or gallium nitride), electrons recombine with electron holes, releasing energy in the form of photons – the light particles we see. This direct conversion is why LED technology is so energy-efficient.

“LEDs revolutionize displays by converting electricity directly to light with remarkable efficiency, cutting energy usage by up to 30% compared to LCD alternatives,” explains Dr. Richard Wong, Electronic Display Research Foundation.

The Role of RGB Color Mixing

Most led displays use a combination of red, green, and blue (RGB) LEDs to create the full spectrum of colors you see. I find this additive color mixing fascinating – by varying the intensity of each color, a single pixel can produce millions of distinct hues.

For example:

• Red + Green = Yellow
• Red + Blue = Magenta
• Green + Blue = Cyan
• Red + Green + Blue (all at full intensity) = White

This RGB model allows what is an LED display to reproduce approximately 16.7 million colors with standard 8-bit processing. Higher-end screens use 10-bit color depth for even more realistic gradients.



Voltage Control and Brightness Management

The brightness of each LED is controlled by precise voltage regulation. By adjusting the electrical current to each diode, how LED display work becomes a masterclass in power management.

Many modern screens use a technique called pulse-width modulation (PWM), where LEDs rapidly switch on and off faster than the human eye can detect. The ratio of “on” time to “off” time determines the perceived brightness.

Essential Components of an LED Screen

LED Modules and Panel Types

LED screens are modular by design, composed of smaller panels that connect to form larger displays. The three main LED package types include:

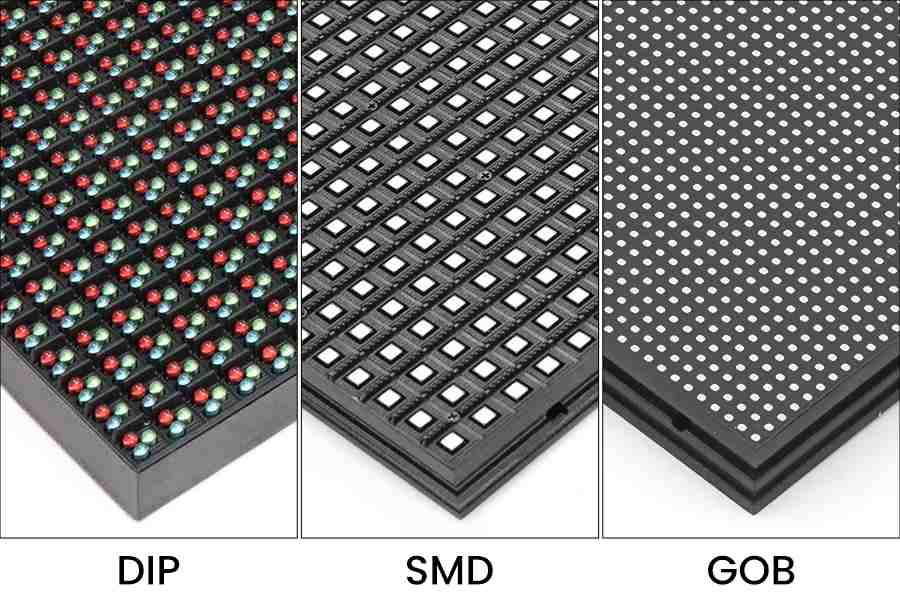

• DIP (Dual In-line Package): Older technology with individually mounted LEDs
• SMD (Surface-Mounted Device): More compact, with RGB diodes in a single package
• GOB (Glue-on-Board): Advanced design with protective resin coating

Each module contains hundreds or thousands of these tiny light points, arranged in a precise grid. TOP Dance’s engineering team has perfected module design to ensure seamless connections between panels, eliminating visible seams in large installations.



Control Systems and Software

The brain behind any led display how it works is its control system. These specialized computers process incoming signals and distribute them to the appropriate LEDs.

Modern control systems include:

• Receiving cards that interpret video signals
• Data processors that optimize content
• Software that allows remote management and content scheduling

“The control system is like the nervous system of an LED display,” notes Iris Liu, Sales Manager at TOP Dance. “Our systems process data at 7680Hz refresh rates, ensuring flawless image quality even for fast-moving content like sports broadcasts.”





Power and Cabinet Design

The physical structure of LED screens includes durable cabinets that house and protect the electronic components. These cabinets must withstand environmental conditions while providing adequate ventilation.

For outdoor LED wall screen installations, TOP Dance uses military-grade aluminum cabinets with IP65 or higher weather protection ratings, ensuring displays remain vibrant even in harsh environments. The power supply system delivers stable, consistent electricity to all components, with redundancies to prevent display failure.

Understanding How Does LED Screens Work to Achieve High Resolution and Quality

Pixel Pitch and Its Impact

Pixel pitch (measured in millimeters) is the distance between the centers of adjacent pixels. This specification is crucial in understanding how a LED screen works and how it will appear to viewers.

A smaller pixel pitch means:

• Higher pixel density
• Better resolution
• Clearer images at closer viewing distances

For example, a P2.5 fixed LED screen (2.5mm pitch) is ideal for indoor corporate environments viewed up close, while a P10 advertising LED display board works perfectly for highway billboards viewed from a distance.

Viewing Distance Considerations

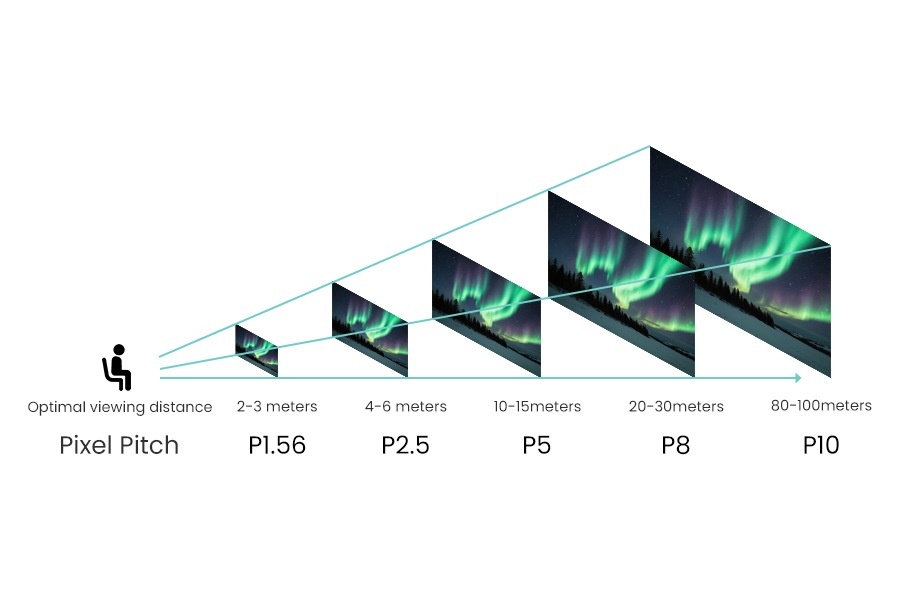

The optimal viewing distance directly correlates with pixel pitch. I always tell clients to follow this simple formula: minimum comfortable viewing distance (in feet) ≈ pixel pitch (in mm) × 3.

According to research from the U.S. Department of Transportation (2023), led display billboard installations should use pixel pitches that ensure text readability from the average viewing distance of target motorists.

Color Depth and Image Accuracy

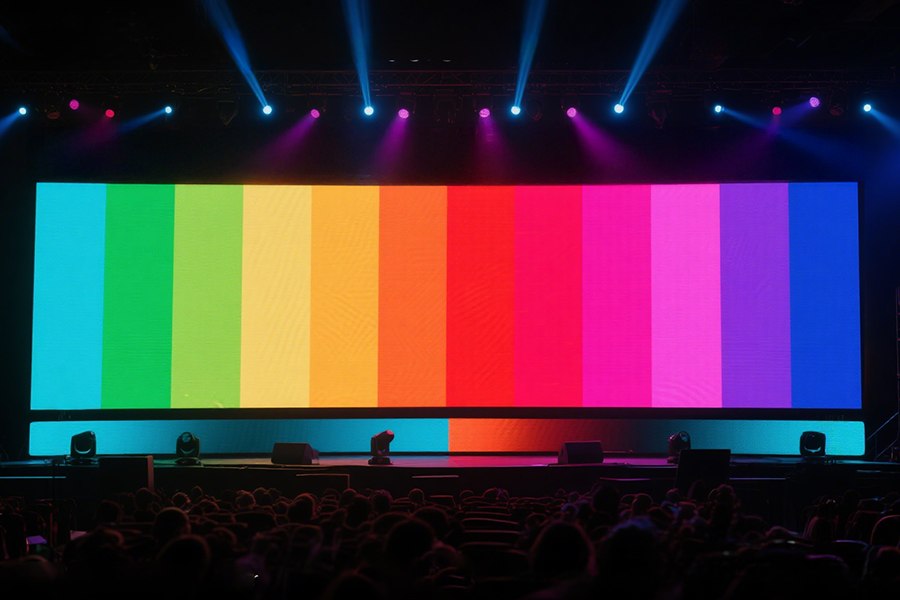

Color reproduction accuracy depends on both hardware and calibration. Professional event LED display systems require precise color management to ensure brand colors appear correctly and consistently across the entire screen.

Modern LED displays achieve this through:

• Higher bit depth processing
• Factory calibration of color temperature
• Regular maintenance of color settings

Technical Specifications Explained

Brightness Standards for Different Environments

Brightness, measured in nits (cd/m²), determines visibility in various lighting conditions:

• Indoor retail displays: 800-1,200 nits
• Semi-outdoor installations: 2,500-4,000 nits
• Direct sunlight led display billboard: 5,000+ nits

As Skift’s 2023 AV Trends Report notes, “Human eyes perceive brightness logarithmically, so doubling the nits doesn’t appear twice as bright—this is why professional-grade displays often exceed 5,000 nits for outdoor applications.”

Refresh Rate and Visual Smoothness

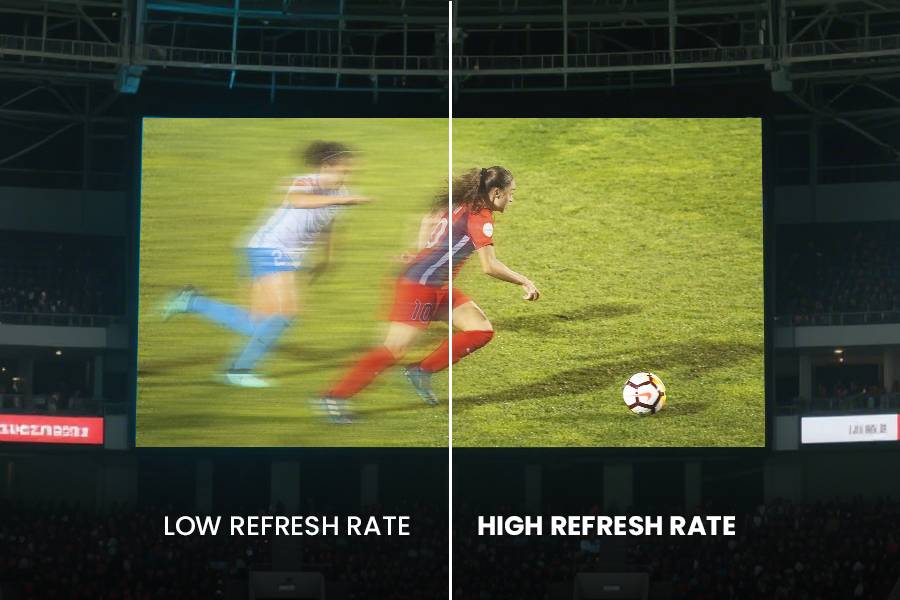

Refresh rate affects how smoothly motion appears on screen. For sport LED display applications, high refresh rates are essential to prevent motion blur during fast-paced action.

Most premium LED displays offer:

• 3,840Hz refresh rates for standard applications
• 7,680Hz for sports and fast-motion video
• Scan ratios of 1/16 to 1/32 for smoothest operation



Lifespan and Durability Factors

LED technology offers exceptional longevity compared to other display technologies. The average LED screen maintains 100,000+ hours of operation before reaching half its original brightness—more than 11 years of continuous use.

For led floor display applications where durability is crucial, TOP Dance employs enhanced protection measures:

• Anti-collision GOB technology
• 2,000kg/m² load-bearing capacity
• Spill and moisture resistance

Types of LED Displays and Their Applications

Indoor LED Screens vs. Outdoor LED Wall Screens

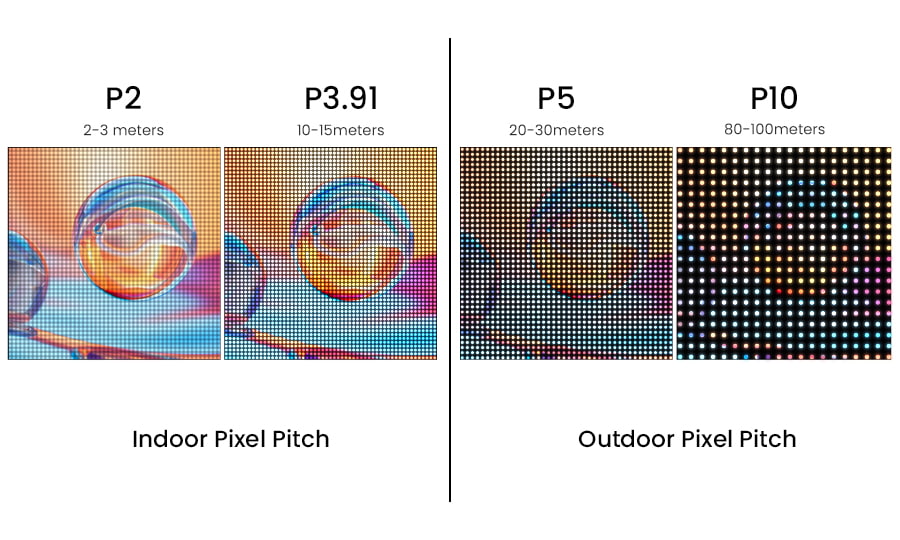

Indoor LED screens prioritize fine pixel pitch and color accuracy, typically featuring:

• 25 to P3.91 pixel pitches
• 800-1,500 nit brightness ranges
• Lightweight, slim designs for easy integration

In contrast, outdoor LED wall screen technology emphasizes:

• Weather resistance (IP65+)
• High brightness (5,000+ nits)
• Robust construction for environmental durability



Specialized LED Display Technologies

The LED display industry has developed specialized solutions for unique applications:

• LED video ball- Spherical displays creating 360° viewing experiences for museums and entertainment venues

• Led floor display– Interactive walking surfaces for retail, nightclubs, and stage productions
• Transparent LED – Semi-transparent screens that allow visibility through the display



• Flexible LED – Bendable screens that conform to curved surfaces

Event and Venue Applications

Event LED display technology transforms venues through dynamic visual elements:

• LED screen for weddingreceptions creates customizable backdrops and atmosphere
• Sport LED displaysystems deliver real-time stats and instant replays
• LED screen exhibitionsetups provide immersive brand experiences
• Concert and stage productions utilize modular designs for creative configurations

TOP Dance has installed over 500 event LED display systems across North America in 2023 alone, with our TP500F model recognized by EventMB’s 2024 LED Buyer Guide as “Best for Mid-Sized Venues.”

How to Choose the Right LED Screen

Matching Display Type to Your Needs

I always advise clients to consider these factors when selecting an LED display:

• Viewing distance and environment
• Indoor or outdoor application
• Fixed installation or temporary use
• Budget constraints and long-term ROI

For retail environments, the TOP Dance P2.5 indoor modules deliver the perfect balance of clarity and value, with viewing distances as close as 8 feet.

Budget Considerations and Quality Balance

While price is important, total cost of ownership includes:

• Initial purchase price
• Installation costs
• Power consumption over time
• Maintenance requirements
• Expected lifespan

Investing in quality components typically delivers better long-term value than cutting corners on critical specifications.

Professional Solutions from TOP Dance

With over 10 years of experience manufacturing LED displays, TOP Dance offers comprehensive support including:

• 3-year warranty on all products
• 24/7 technical support from certified specialists
• Los Angeles warehouse for quick US delivery
• Custom design solutions for unique applications

“Our factory’s 3200 sqm production facility with 20 manufacturing lines produces 1000 display tiles daily, each undergoing 72-hour testing protocols,” explains TOP Dance technical director. “This ensures exceptional reliability for every installation.”

How Does LED Screen Work: Conclusion

Understanding how does LED screen work reveals the remarkable technology behind these vibrant displays. From the physics of semiconductor light emission to the complex control systems managing millions of pixels, LED screens represent one of the most visible technological innovations in our daily lives.

Whether you’re considering a massive advertising LED display board for highway visibility or an immersive led floor display for your next event, the fundamental principles remain the same – precise light control, color mixing, and signal processing working in harmony.

I encourage you to evaluate your specific needs carefully and consult with LED specialists to find the perfect solution. For the most demanding applications, professional-grade displays from established manufacturers like TOP Dance offer the reliability and performance that ensure your visual communication achieves maximum impact.

Always request on-site demos before making significant investments, as brightness, color accuracy, and viewing angles are best evaluated in your specific environment.
