LED Poster Display (1)

P1.86 LED Poster Screen

  • Slim and portable cabinet design
  • Super-fast 5-minute installation
  • Ultra-high-definition image quality
  • Supports multiple installation methods
  • Convenient synchronization control

Lightweight and Portable Cabinet Design

Optimized sleek cabinet design with a more aesthetic appearance, measuring 1920mm x 640mm, enhancing its class. Weighing 35KG/SQM and equipped with wheels, this design allows for easier and more convenient mobility, also saving on installation time and labor costs.

Seamless Flatness Screen Panel

With gaps less than 1mm between any adjacent pixels and module stitching gaps under 1mm, it delivers vivid and realistic image effects, creating a flawless and smooth LED display surface.

Stunning LED Display Effects

A pixel pitch of 1.86mm produces clearer high-definition video images. Bright color saturation, higher contrast, and standard vivid color presentation offer a lifelike visual feast.

Smooth, No-lag Display

With a refresh rate greater than 3840HZ, it presents a smooth, no-lag display.



Adjustable Brightness

Advanced brightness adjustment methods support 100 levels of software adjustment, achieving better brightness balance and convenient use in various indoor lighting conditions.

Advanced Protection Technology

The LED poster screen features moisture resistance, dust resistance, corrosion resistance, and anti-static properties, as well as overcurrent, short-circuit, overvoltage, and undervoltage protection to ensure long-term stable operation.



Extremely Simple Installation

By simply twisting screws to set up the bracket and securing the LED poster screen onto it, followed by straightforward wiring, control becomes effortless. Choose the TOP DANCE LED poster screen for an easy plug-and-play installation.

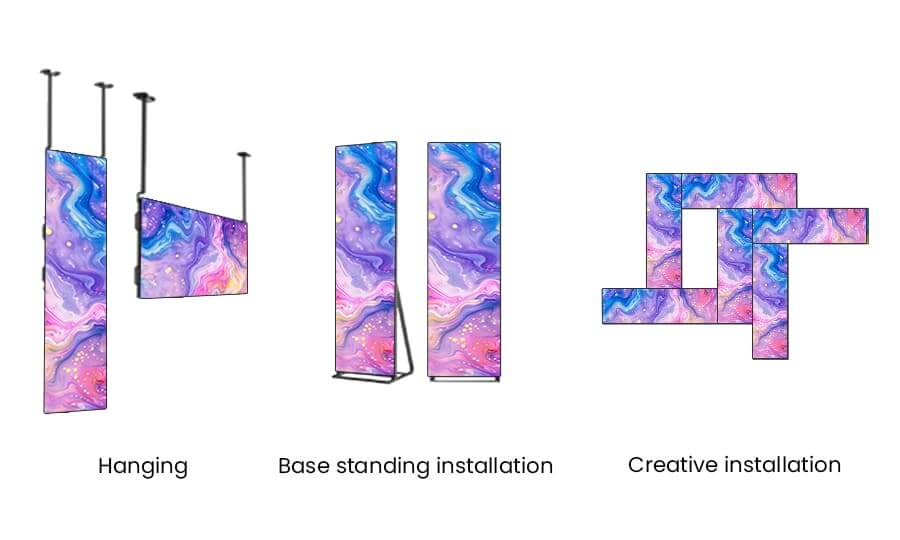

Various of Installation Modes

Supports multiple installation methods, such as stand mounting, base standing, wall mounting, hoisting or hanging, multi-layer cascading, and creative installations. No steel structure is needed, making it convenient and effective.



Super Convenient & Quick Control Methods

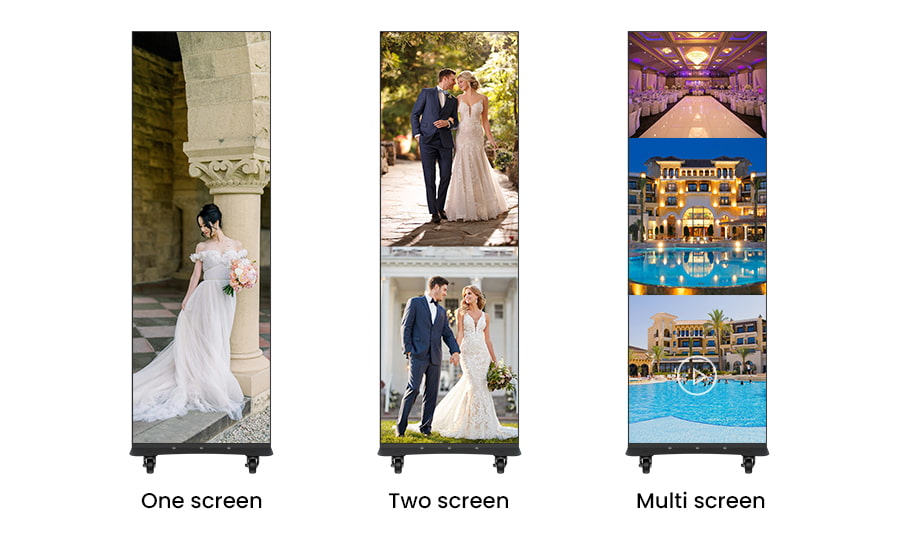

Supports synchronous control for rapid and easy adjustments, including computer control for smarter operations. It allows simple manipulation of playback effects and supports multiple formats of animation files and image files.



Specification

Category Specification Details
Single Cabinet Pixel Pitch 1.86mm
Density 288,906 dots/m²
LED Composition 1R1G1B
Color Pure Red, Pure Green, Pure Blue
Panel Size 320mm x 160mm
Cabinet Size 1920mm x 640mm
Cabinet Weight 35KG/SQM
Brightness ≥750cd/m²
Whole Screen Best Viewing Distance 3m to 10m
Best Viewing Angle Horizontal 140°, Vertical 140°
Environment Temperature Storage: -40℃ to +85℃, Operation: -20℃ to +60℃
Humidity 10% to 95%
Screen Depth 12cm
Power Working Voltage AC220V±10%, 50Hz
Average Power Consumption 350W/m²
Maximum Power Consumption ≤800W/m²
Control System Control Computer Lenovo or equivalent
Operating System WIN 98/ 2000/ NT/XP
Control Method Synchronization
Display Card DVI display card

LED Poster of Various Pixel Pitch

LED Poster Display (2)

P1.86 LED Poster Screen

LED Poster Display (1)

P2.5 LED Poster Display

FAQs of TOP DACNE P1.86 LED Poster Screen

What Is the Lifespan of P1.86 LED Poster Screen?

The lifetime of TOP DANCE P1.86 LED Poster Screen is 100,000 hours.

What Is the Warranty of P1.86 LED Poster Screen?

TOP DANCE P1.86 LED Poster Screen support 3 years of warranty and ensure you a more reliable purchasing experience.

What Types of Content Can Be Displayed on the P1.86 LED Poster Screen?

The poster screen can display text, images, and animations, supporting various file formats including BMP, JPG, GIF, PCX, MPG, MPEG, MPV, MPA, AVI, VCD, SWF, RM, RA, RMJ, ASF, and more.
What Are the Optimal Viewing Distance and Angle for This Screen?
The optimal viewing distance is between 3 and 10 meters, with a viewing angle of 140 degrees both horizontally and vertically.
