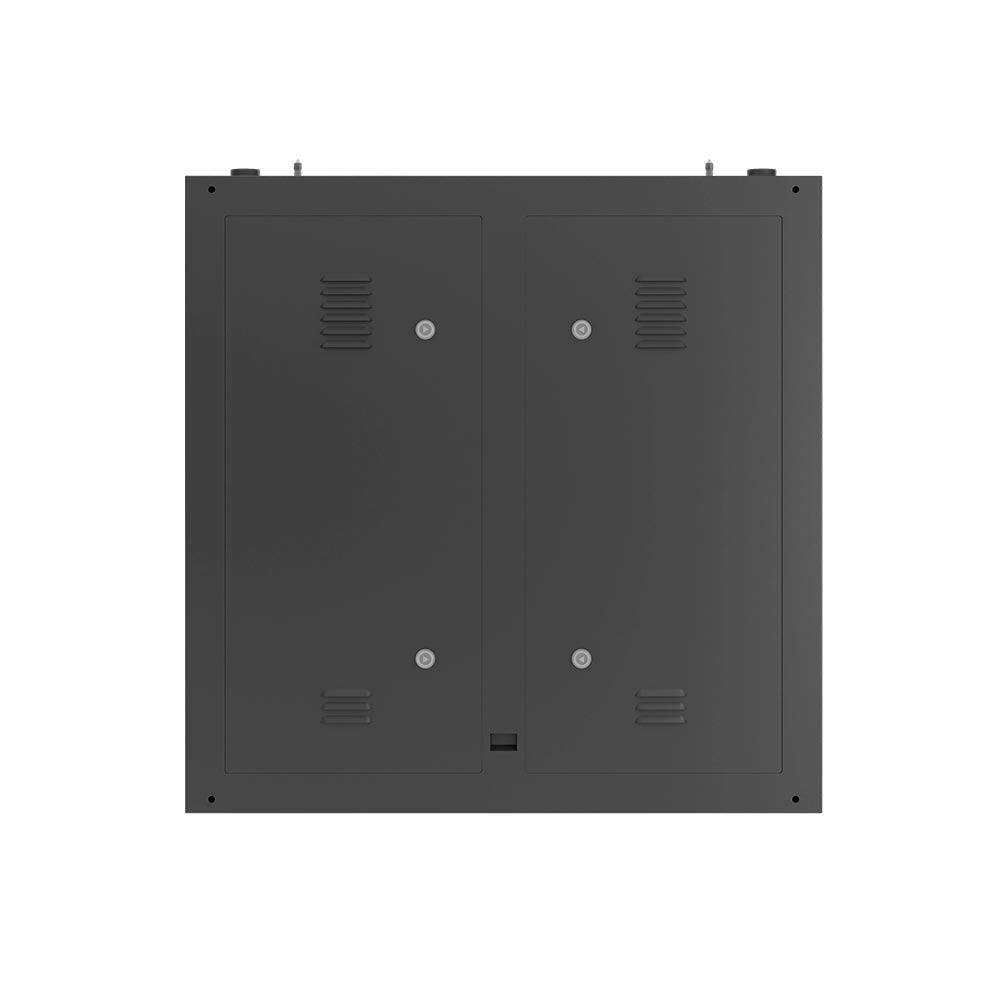

TP960B Series Outdoor LED Panel Display
TP-960P Series

Outdoor LED Panel Display

  • Reliable 3 Years of Warranty
  • Quick Problem Shooting Rear Maintenance
  • Favorable Outdoor LED Display Solution
  • Various Pixel Pitch: P2.5 P3.076 P4 P5 P6.67 P8 P10
Inquiry
WhatsApp

Outdoor Fixed LED Display

This Outdoor fixed LED display screens, a more cost-effective purchasing plan for outdoor LED display screens, better protective design to cope with various weather conditions of outdoor environments. Diverse installation modes and extensive range of applications achieve more versatile and efficient utilization.
TP 960B outdoor fixed led display

Cabinet with Great Protective Design

Improved cabinet protection design ensures better resistance to various outdoor weather conditions and environments, offering moisture, dust, and corrosion resistance, as well as robust durability with an extended lifespan of 100,000 hours. It is better adapted to outdoor environments, ensuring practicality and longevity.
protective function of TP 960B outdoor fixed led display

Efficient Rear Maintenance

Rear maintenance can rapidly identifying and resolving issues and malfunctions in LED displays to ensure the stability of their functionality and performance. It allow for swift and efficient maintenance, providing a faster and more efficient way of conducting repairs.
rear maintenance of TP 960B outdoor fixed led display

Seamless Cabinet Splicing

The seamless splicing mode between cabinets not only achieves a clearer visual effect but also creates a more vivid and detailed visual image. Eliminates gaps between displays to create a more natural visual effect, presenting a continuous and uniform picture for a more natural and smooth visual effect.
TP960B Seamless Cabinet Splicing

Suitable for Various LED Display Modules

Our outdoor fixed LED display is designed to better adapt to various pixel pitches. This module can be compatible with various types of LED displays, such as P2.5, P3.076, P4, P5, P6.67, P8, P10, and more, making it well-suited for different usage scenarios
TP960B LED Display Modules

Installation Modes

This outdoor fixed LED display can be installed using two methods, including hanging and bracket installation. Both of these methods are commonly used and provide a stable and reliable installation.
TP960B Installation Modes

Outdoor LED Panel Display

TP960B

P2.5

320*160mm module size
960*960mm cabinet size

TP960B

P3.076

320*160mm module size
960*960mm cabinet size

TP960B

P4

320*160mm module size
960*960mm cabinet size

TP960B

P5

320*160mm module size
960*960mm cabinet size

TP960B

P6.67

320*160mm module size
960*960mm cabinet size

TP960B

P8

320*160mm module size
960*960mm cabinet size

TP960B

P10

320*160mm module size
960*960mm cabinet size

Specification

Pixel pitch(mm) 2.5 3.067 4 5 6.67 8 10
Cabinet size 960*960mm 960*960mm 960*960mm 960*960mm 960*960mm 960*960mm 960*960mm
LED Type SMD1415 SMD1415 SMD1921 SMD1921 SMD3535 SMD3535 SMD3535
Module size 320×160 320×160 320×160 320×160 192×192 256×128 320×160
Module resoulution 64×64 64×64 64×32 64×32 32×32 32×16 32×16
Cabinet Weight 45kg 45kg 45kg 45kg 45kg 45kg 45kg
Refresh Rate ≥7680hz ≥7680hz ≥7680hz ≥7680hz ≥7680hz ≥7680hz ≥7680hz
Gray scale 14-16 14-16 14-16 14-16 14-16 14-16 14-16
Best Viewing Angle 140(W) 140(H) 140(W) 140(H) 140(W) 140(H) 140(W) 140(H) 140(W) 140(H) 140(W) 140(H) 140(W) 140(H)
Lifetime 100,000h 100,000h 100,000h 100,000h 100,000h 100,000h 100,000h
Screen Signal PAL/NTSC PAL/NTSC PAL/NTSC PAL/NTSC PAL/NTSC PAL/NTSC PAL/NTSC
Display Card DVI display card DVI display card DVI display card DVI display card DVI display card DVI display card DVI display card
Working Voltage AC220V±15％ / 110V±15％ AC220V±15％ / 110V±15％ AC220V±15％ / 110V±15％ AC220V±15％ / 110V±15％ AC220V±15％ / 110V±15％ AC220V±15％ / 110V±15％ AC220V±15％ / 110V±15％
Brightness ≥5000 ≥5000 ≥5000 ≥5000 ≥5000 ≥5000 ≥5000
Driver Way 1/16 1/13 1/8 1/8 1/8 1/4 1/2

Captivating and Clear Visual Impact

Ultra-high-definition

As an outdoor LED display product, it is subject to the influence of the outdoor environment on visual effects. This LED display can achieve pixel selection ranging from P2.5 to P10, meeting all your requirements for pixel density and clarity, present clearer and stunning images and videos.

High Brightness LED Display

To ensure a clearer image presentation even in outdoor settings, our outdoor LED display is designed to deliver outstanding detail representation and viewing experience. It guarantees better visual brightness, providing a flawless visual effect to ensure a superior viewing experience.

Ultra-Wide Viewing Angle

With a wider viewing angle for 160°, it ensures that audiences from all directions can have a clearer and better viewing experience. If used as an advertising display, it ensures that your content is optimally presented on this screen, attracting more attention.
wide viewing angle of TP 960B outdoor fixed led display

Application Fields

A more extensive range of applications, it can be used in various outdoor settings. For instance, in shopping malls, airports, and other public areas as outdoor advertising display screens, showcasing videos and images to attract viewers. Additionally, it can be used for outdoor interactive purposes, such as outdoor weddings, concerts, and various types of outdoor parties, among others.
application field of TP 960B outdoor fixed led display

Sturdy Packing

As one of the best LED display screen factory, we use flight cases as the packaging for the LED display screen to achieve greater reliability and durability. The design includes anti-collision and moisture-resistant features, providing better protection for the LED display screen. Additionally, we offer custom flight case services, allowing for the inclusion of your logo.

Reliable 3-Year Warranty

Not only enjoy favorable LED display price, this product also comes with a 3-year warranty period, offering more reliable and professional after-sales service. It ensures that customers can promptly get their questions resolved during the warranty period after purchasing the product

FAQs

Can LED displays be used for outdoor events in all weather conditions?

Certainly, as a professional led display manufacturers in china, we offer better outdoor fixed display screen, as a versatile outdoor fixed display product, can better adapt to the outdoor environment, including various lighting conditions. This allows for a more detailed and clearer, eye-catching visual experience.

What is the lifespan of LED display modules?

The usage lifespan of the display module has reached 100,000 hours, making it a higher quality choice for a worry-free purchase. With better reliability and higher cost-effectiveness, it offers a more practical and economical option.

Can LED displays be wall-mounted?

For its led display screen sizes, wall mounting is a more suitable installation method for this display screen enclosure. However, it can also be installed using a vertical bracket. Both of these methods are commonly used installation modes.

Can LED displays be used as giant outdoor screens for public events?

Yes, this outdoor LED display can be widely used as a large screen in outdoor public areas, advertising led display or led display billboard, providing high-definition visual presentations and attracting more attention and focus.
