LED Display Module

1. What Is LED Screen Module?

LED display modules are essential components of LED displays, embedded with small light-emitting diodes. An LED display is made up of multiple LED modules, which are the parts that display the image. These modules come in various types and can be categorized by pixel pitch, typically ranging from P1 to P10. They can also be divided into types, such as rear and front maintenance LED module.

Modules vary in shape and size to fit different casings, mostly square or rectangular. Some modules for uniquely shaped screens can be quite special, such as triangular modules used in LED sphere displays. The shapes of flexible LED display modules are usually more varied.

2. What Are the Components of the LED Display Module?

An LED display module includes its core component, the LED chip, which can be either single-color or multi-color, primarily responsible for emitting light; a printed circuit board, where the LED chips are mounted, capable of making electrical connections and aiding in heat dissipation; driver ICs that control the current through the LEDs, managing brightness and color; a power supply for powering the unit; and other optical components, heat sinks, connectors and wiring, as well as a housing that protects against mechanical damage and reduces environmental impact on the module.

3. What Are the Types of LED Display Modules?

LED modules are typically categorized into rigid modules and flexible modules. Rigid LED display modules are used in conventional casings, while flexible LED display modules are employed in custom-shaped screens to better adapt to the unique configurations of LED displays.

Another classification method is based on the application environment: indoor LED display module and outdoor LED display module. Indoor modules typically feature smaller pixel pitches such as P1.5, P2, P2.5, P3, and P3.91, which are common specifications for indoor LED modules. For outdoor applications, larger pixel pitches such as P4, P5, P6, P8, and P10 are prevalent in outdoor LED display modules.

Generally, outdoor LED modules exhibit higher brightness levels and protection ratings compared to indoor modules, as they need to withstand direct sunlight and diverse weather conditions. Typically, the waterproof rating for outdoor modules should be at least IP65 to ensure adequate protection against environmental elements.

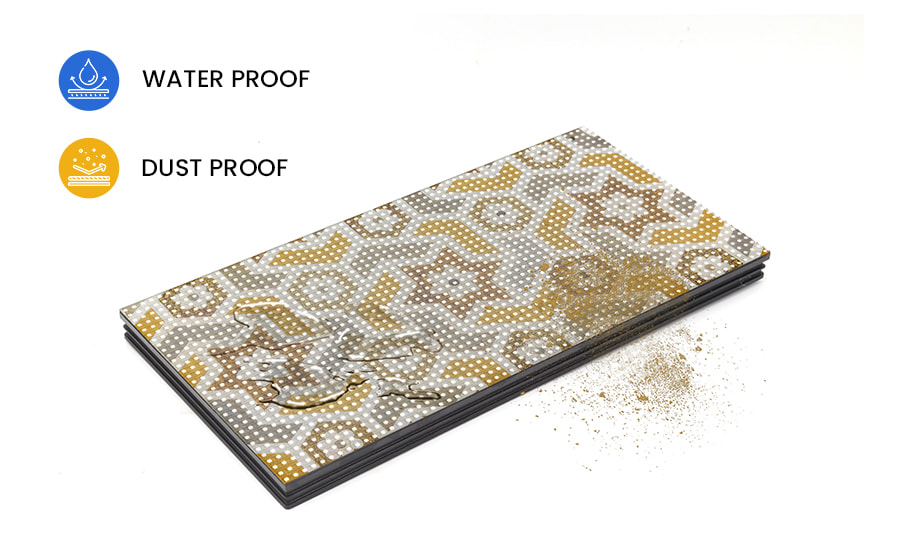

If you require a high level of protection for your modules, the GOB module might be the best fit for your needs. GOB modules offer superior protection levels, effectively guarding against water, dust, impact, and corrosion. They are well-suited to withstand extreme outdoor weather conditions and also provide enhanced resistance to damage during transportation.

4. What Does a LED Module Do?

4.1 Presenting Information or Visual Content

The basic function of an LED module is to emit light. LED is a light-emitting diode, a modern technology that can emit different colors and lights through control. Images, videos, and text can be displayed by combining several LED modules together.

4.2 Exceptional Durability and Energy Efficiency

Compared to other products used for displaying visual content, LED display modules have relatively low energy consumption. They are also highly durable, with a lifespan ranging from at least 50,000 hours to 100,000 hours or even longer, reducing the frequency of maintenance and replacements.

4.3 Modularity and Scalability

LED screen modules are components of LED screens. When modules are used long-term or accidentally damaged, they support quick replacement and maintenance. They can be rapidly upgraded, unlike traditional LCD screens that require whole panel repairs, making them more flexible and efficient.

5. Can You Replace LED Modules?

LED modules are very easy to replace and maintain. The main advantage of LED modules is that they are easy to use and repair. Conventional LED displays support both rear and front maintenance methods. Compared to LCD display products, LED modules can be individually dismantled and replaced, significantly reducing the cost of maintenance later on.

6. How Do You Maintain LED Display Modules?

Front maintenance LED display modules usually have magnets on them, which securely attach to the surface of the LED display casing (some may also require wiring). When a module malfunctions, it can be directly removed from the front using a magnetic tool and replaced with a new LED module, which is very convenient.

Rear maintenance is slightly more complex than front maintenance. It only requires unscrewing the screws that hold the module in place from the back, allowing the damaged module to be removed and replaced with a new one. This method is also relatively convenient and doesn’t require very complicated tools.

7. What Size Are LED Screen Modules?

Common LED display module size is 250*250mm 320*160mm the amount of these two sizes, these two sizes can be better adapted to different sizes of chassis, such as 500x500mm, 500x1000nn, 640x640mm, 960x960mm chassis and so on.
