Outdoor LED Display Module

1. What Is Outdoor LED Display Module?

Outdoor LED display module is a type of LED display module specifically designed for outdoor environments. Compared to indoor LED display modules, this type of LED display module has significant differences in terms of protection features, brightness, and pixel density. To meet outdoor brightness requirements, it has higher brightness levels and typically features pixels of P4 or higher, allowing for greater visibility at longer distances.

2. What Are the Key Features of Outdoor LED Display Modules?

Expanded Pixel Range:

Outdoor displays typically have a pixel pitch of P4 or higher, making them more suitable for outdoor use. This larger pixel pitch is ideal for long-distance viewing outdoors. Common outdoor modules include P10 LED display modules, P5 LED display modules, P8 LED display modules, P6 LED display modules etc.

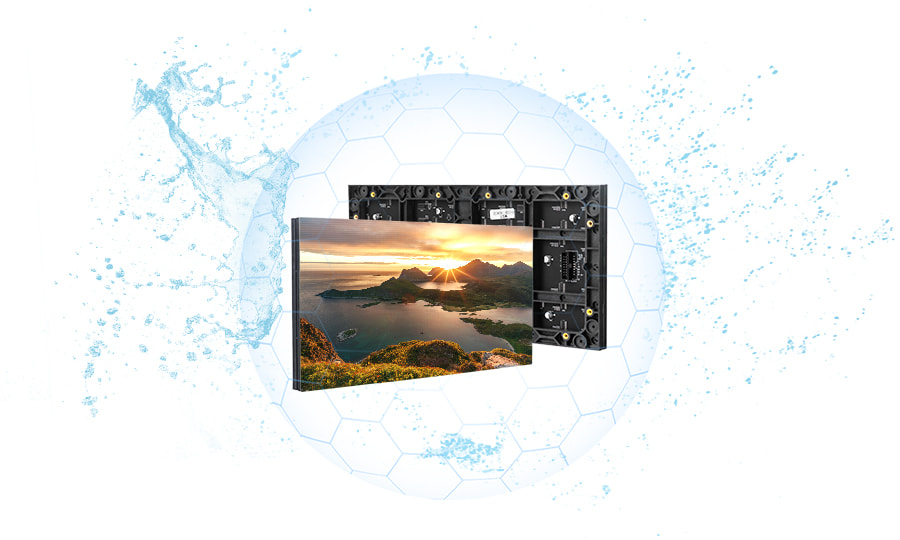

Effective Protective Features:

Outdoor LED display modules require robust protection due to exposure to extreme weather conditions such as heavy rain, snow, and dust storms. Therefore, outdoor LED modules are usually equipped with a protective cover to enhance durability and lifespan. In addition to surface waterproofing, there’s often a waterproof coating on the back of the module.

Higher Brightness and Visibility Requirements:

Outdoor modules demand higher brightness levels because outdoor environments are brighter than indoor settings, often with direct sunlight. Typically, brightness ranges from 5,000 nits to 10,000 nits to ensure clear visibility under various lighting conditions.

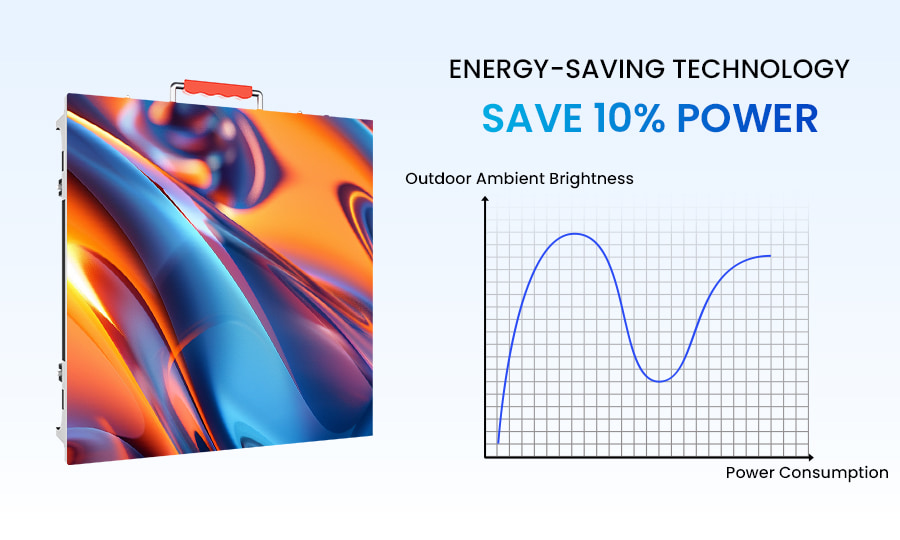

Energy Efficiency:

Outdoor LED display modules consume more power compared to indoor screens. However, many outdoor LED modules incorporate special technologies to achieve improved energy efficiency.

3.What Is the Structure of Outdoor LED Display Module?

The surface of outdoor LED display modules is composed of many LED chips. Depending on the pixel pitch (P-number), the arrangement of pixels on the panel varies. Outdoor LED display modules are typically equipped with protective covers to shield the LED chips and electronic components from environmental factors such as rain and dust.

At the bottom, there is a circuit board including the power supply and control systems, equipped with driver ICs, and connectors on the top.

The module frame supports and protects the LED chips and electronic components. It is usually made of high-strength materials to ensure structural stability.

4. What Are Common Types of Outdoor LED Display Module?

Outdoor LED display modules come in many types. There are dual-color LED display modules (red R, green G) capable of displaying simple graphics and text, but with limited color effects, typically used at bus stops and similar locations. Additionally, there are hybrid LED display modules that combine RGB with single-color or dual-color LEDs, capable of displaying more vibrant and colorful images and videos. Full-Color LED Display Modules, similar to RGB modules, full-color LED modules offer a wider range of color combinations and shades.

By type, there are ordinary LED display modules suitable for both fixed installation and rental screens, which are convenient and easy to install and dismantle. There are also transparent LED display modules with transparency, suitable for installation on glass curtain walls or large windows. Curved LED display modules can be flexibly installed, ideal for use on curved surfaces or uniquely shaped buildings, enhancing visual effects.

GOB modules are a type of LED display module with enhanced protection compared to regular modules. They employ advanced manufacturing techniques, such as resin encapsulation on the module surface, which better shields the LED light sources from impact, water, corrosion, and dust. This makes them suitable for various outdoor environments, reducing maintenance costs and extending their lifespan significantly.

5. How to Install the LED Display Module?

Align and secure eight LED modules within the designated cabinet frame, ensuring stability and level positioning. Use suitable fasteners and brackets to fix the modules securely. Connect power and data cables as per specifications, and test connections for proper functionality before finalizing installation. Power on the LED modules to verify all pixels are operational on the display screen.
生产流程视频
If it’s a front maintenance LED module display screen, installation is much simpler. You can directly align and attach the module to the cabinet using magnets on the module itself. For modules with flexible connections for front maintenance, simply connect the wires to the module interface.

6. What Is the Standard LED Display Module Size?

The dimensions of outdoor LED display modules are typically 250x250mm or 320x160mm, which are very standard sizes because they can adapt to various cabinet styles and sizes. For instance, a 250x250mm module can fit cabinet sizes of 500x500mm and 500x1000mm. A 320x160mm module can fit cabinets of 640x640mm, 640x480mm, and 960x960mm, which are all very common sizes.

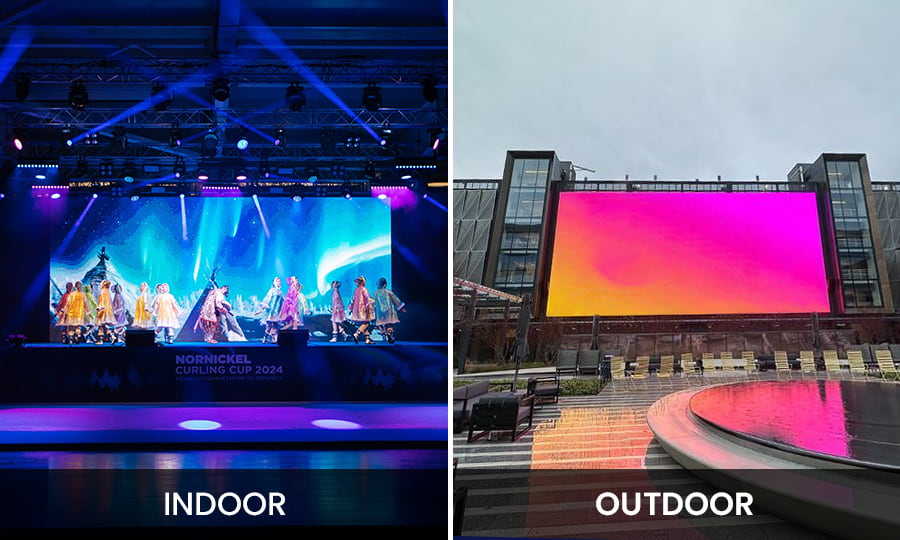

7. How Do Outdoor LED Display Modules Differ from Indoor Ones?

The protection capability of outdoor LED display modules is higher compared to indoor ones, as indoor modules typically lack waterproof features. Outdoor modules also generally have better brightness parameters than indoor ones. Outdoor LED displays need to contend with direct sunlight to ensure visibility, so brightness settings are typically higher. Additionally, outdoor pixel pitch is usually larger than indoor ones to accommodate viewing from longer distances. Outdoor pixel pitches are commonly P4 and above, whereas indoor pixel pitches are typically P4 and below.
