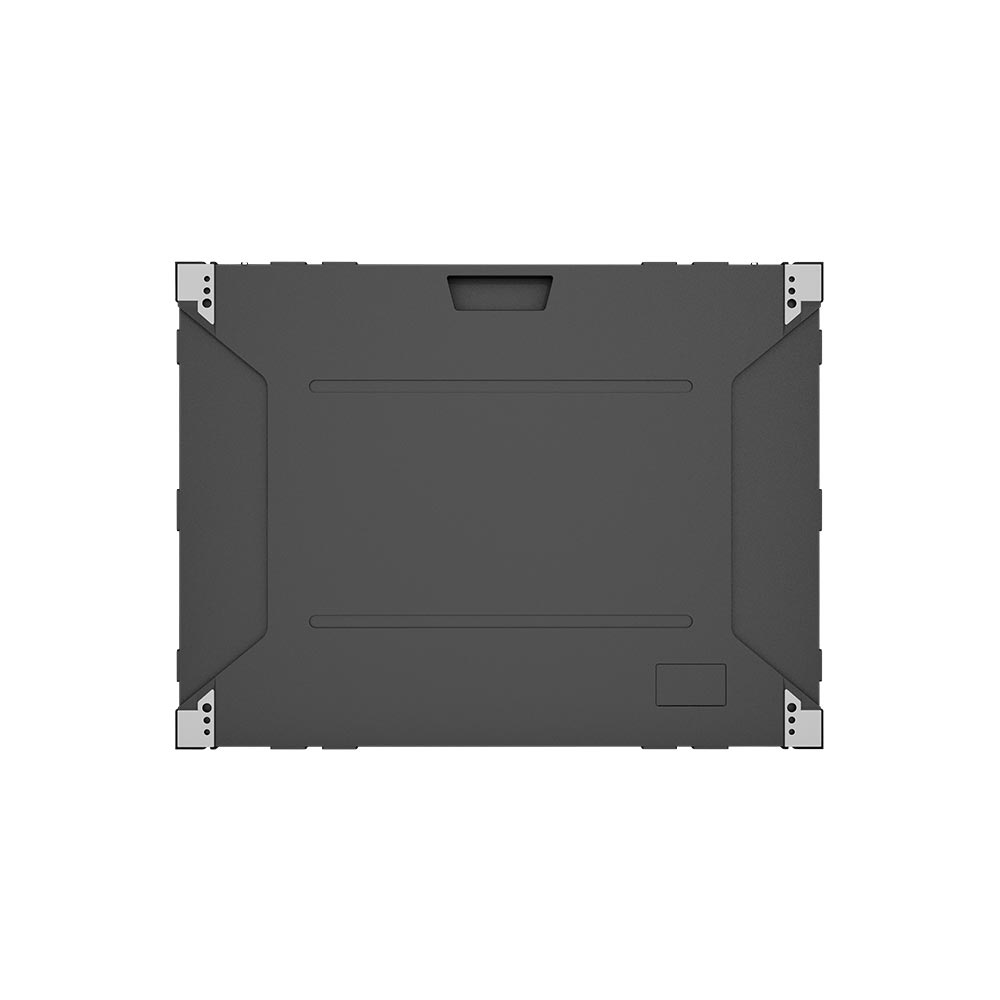

TP480S Series LED Display
TP-886 480F Series

Indoor Full Color Led Display

  • 640*480mm Cabinet Size
  • Support Full 3-Year Warranty
  • Convenient Front Maintenance Design
  • Various Pixel Pitch with Fabulous Visual Effect

Indoor Full Color Led Display

The TP480S Series Indoor Full Color Led Display Screen shrinks individual pixel pitch, resulting in images that are sharper and clearer, resulting in a strong visual compact and stunning. It is simple to mount on the wall with the necessary parts; it is easy to install with tools and instructions for assembly that provided.
size of LED display

Front Maintenance Method

The Led Display modules are created specifically by employing high-technology magnets. To fix the faulty module, simply attract the chosen module and to replace it with a new one, which is both time-saving and simple to repair.
front maintenance of led display

Pleasant Visual Experience

The TP480S Series Led screen display board has an extremely high transmittance and a strong ability to restore the original color of the screen. Precise pixels enhance the visual effect and the stereoscopic effect.
seamless splicing of TP480S LED display

Reliable Warranty and Support

As an authoritative Led display China manufacturer, our product come with a 3-year warranty and expert high-tech assistance to assist with any inquiries or issues. In addition, providing 24 hour customer care to react to you right away; if you have any concerns about the items, please contact us. We will do our utmost to support you.

Strong Fixation and Stability

TP480S Series Indoor Full Color Led Display is easy to install. The shinning point is that Fixed Led Display has an interlock mechanism between the top and the bottom to connect them together, which assures its strong fixation and stability.
seamless splicing of TP480S LED display(2)

Specification

Pixel pitch(mm) 1.25 1.538 1.8605 2 2.5
Cabinet size 640*480mm 640*480mm 640*480mm 640*480mm 640*480mm
LED Type SMD1010 SMD1010 SMD1515 SMD1515 SMD2020
Module size 320*160mm 320*160mm 320*160mm 320*160mm 320*160mm
Module resoulution 256*128dots 208*104dots 172*86dots 160*80dots 128*64dots
Cabinet Weight 7.5kg 7.5kg 7.5kg 7.5kg 7.5kg
Refresh Rate ≥3840hz ≥3840hz ≥3840hz ≥3840hz ≥3840hz
Gray scale 14-16 14-16 14-16 14-16 14-16
Minimum Viewing Distance ≥1.2m ≥1.5m ≥1.8m ≥2.0m ≥2.5m
Best Viewing Angle 160(W) 140(H) 160(W) 140(H) 160(W) 140(H) 160(W) 140(H) 160(W) 140(H)
Lifetime 10000h 10000h 10000h 10000h 10000h
Screen Signal PAL/NTSC PAL/NTSC PAL/NTSC PAL/NTSC PAL/NTSC
Display Card DVI display card DVI display card DVI display card DVI display card DVI display card
Working Voltage AC220V±15% / 110V±15% AC220V±15% / 110V±15% AC220V±15% / 110V±15% AC220V±15% / 110V±15% AC220V±15% / 110V±15%
Brightness ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡
Driver Way 1/64 1/52 1/43 1/40 1/32

Indoor Full Color Led Display

TP480S Series

P1.25

320*160mm module size
640*480mm cabinet size

TP480S Series

P1.538 Indoor Module

320*160mm module size
640*480mm cabinet size

TP480S Series

P1.8605 Indoor Module

320*160mm module size
640*480mm cabinet size

TP480S Series

P2 Indoor Module

320*160mm module size
640*480mm cabinet size

TP480S Series

P2.5 Indoor Module

320*160mm module size
640*480mm cabinet size

High Definition Led Display

Full Color Display

Enjoy vivid sights and clear graphics with exact pixel clarity. All of your digital content will get a new depth with the TP480S Series, spicing up your life.

Strong Visual Impact

To meet your needs, the TP480S Series offers the ideal fusion of performance, responsiveness, and breathtaking images for a remarkable watching experience.
visual impact

High Refresh Rate and Short Response time

You may experience immersive graphics thanks to quick response times that reduce transition time variations and deliver high-quality moving images.

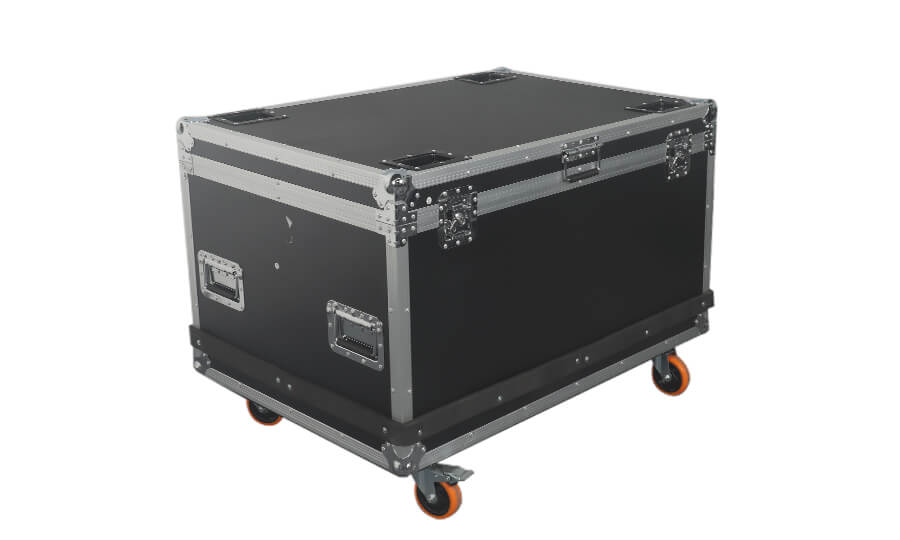

Special Packing, Secure Shipping

By means of using flight case to pack the TOP DANCE LED display screens, the package will be preserved intact without being bumped. As an authoritative brand in LED display screen industry, assuring our products in good condition is the prerequisite of providing good shopping experience with our customers.
Packing of LED Display

Application Fields

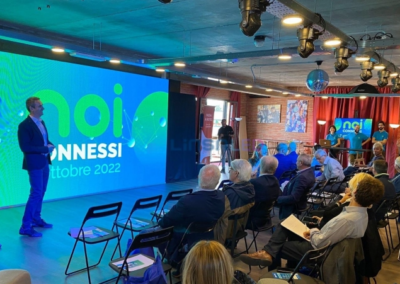

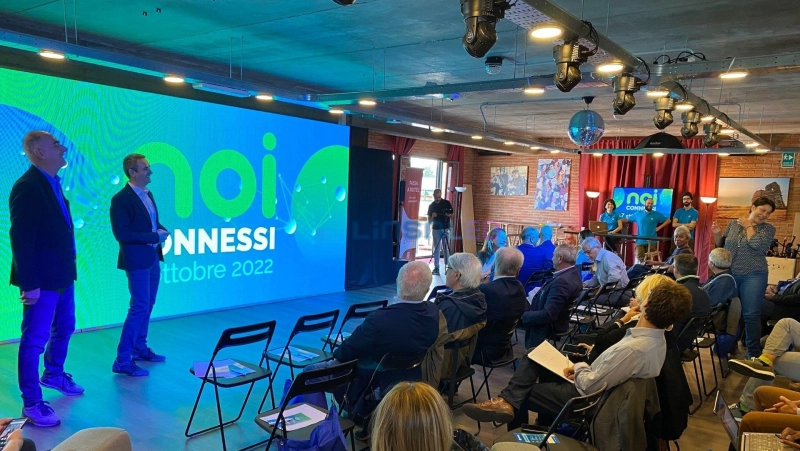

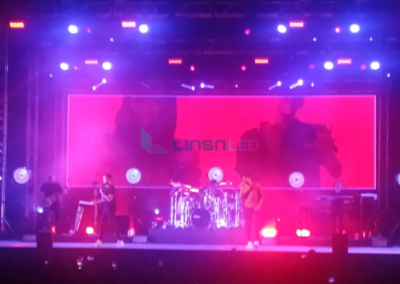

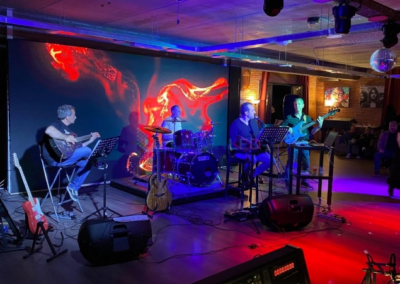

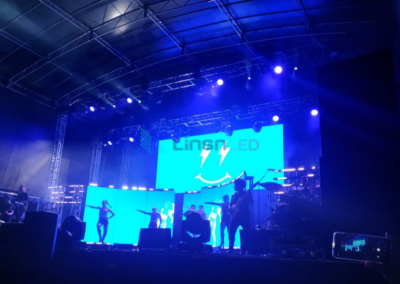

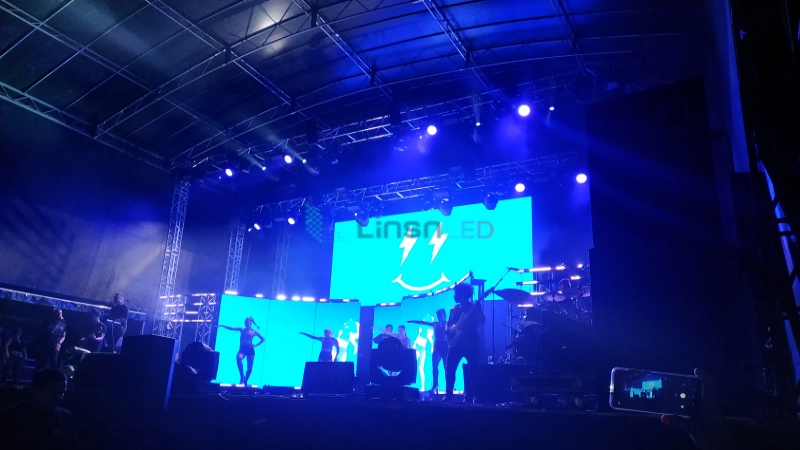

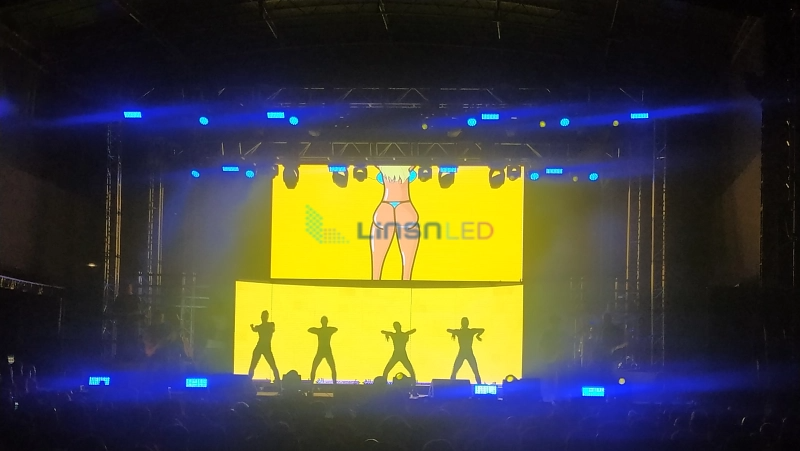

TP480S Series is mainly used in advertising, exhibition, conference room, indoor concert etc. And it can be used as Event Led Display, being use for wedding, party, shows and so on, which plays a pivotal role in holding events.

FAQs

1. What is the lifespan of an TOP DANCE LED display?

LED screen displays are known for their long lifespan. On average, TOP DANCE LED displays can last for ten years of usage. This extended lifespan is attributed to the durable nature of LEDs, which are solid-state components that do not have any moving parts. However, it’s important to note that the actual lifespan can vary depending on factors such as usage intensity, environmental conditions, and maintenance practices.

2. Can TOP DANCE LED displays be used for 24/7 operation?

Yes, TOP DANCE LED displays are designed to operate continuously, making them suitable for 24/7 operation. TOP DANCE LED technology is highly energy-efficient and generates minimal heat, allowing the displays to run for extended periods without overheating. However, it is advisable to implement proper cooling and ventilation systems to ensure optimal performance and maximize the longevity of the display.

3. Are TOP DANCE LED displays compatible with different operating systems?
TOP DANCE LED screen for display are compatible with a wide range of operating systems. They can seamlessly integrate with various devices and software platforms, allowing for easy content management and control. TOP DANCE LED display manufacturers provide dedicated software solutions that are compatible with different operating systems, enabling users to conveniently update and manage content on the displays.
4. Can TOP DANCE LED displays be used for events?
Yes, TOP DANCE LED displays are widely used for events due to the versatility and high image quality. TOP DANCE LED Displays are capable of displaying high-resolution content, ensuring that the visuals are crisp and vibrant, even in large venues. Their brightness and color accuracy make TOP DANCE LED displays suitable for indoor events, providing a captivating viewing experience for audience.
