TP-1000B Series
Outdoor Full Color LED Display
- 500*1000 LED Display Cabinet Size
- Single Module Design, Easy to Install
- High Refresh Rate for Smooth Image
- With an Impressive Lifespan of 100,000 Hours
Outdoor Full Color LED Display
The LED display cabinet, measuring 500*1000, is both compact and sturdy. It is designed to accommodate different module panels, ranging from P2.604 to P5.95. This versatile feature makes it suitable for various outdoor events and venues, where it can effectively capture attention and attract viewers.
User-friendly Outdoor Full Color LED Display Cabinet
The outdoor LED display structure boasts an extraordinary design with meticulous attention to detail, making handling and splicing remarkably effortless. Its unique handle design ensures easy carrying, while the interlocking mechanism guarantees seamless and robust splicing.
Lighter and Thinner LED Display Cabinet
This outdoor LED display panels features a common size of 500mm*1000mm, which offers excellent compatibility with various pixel pitch modules. Its ultra-lightweight cabinet, weighing only 20kg per SQM, and slim profile of 10cm make installation effortless and hassle-free.
Rear Maintenance
The LED display panel outdoor is designed for rear maintenance, ensuring maintenance tasks are carried out efficiently and precisely to guarantee stable quality.
Versatile Installation Method
Specification
| Pixel pitch(mm) | 2.604 | 2.976 | 3.91 | 4.81 | 5.95 |
|---|---|---|---|---|---|
| Cabinet size | 500*1000mm | 500*1000mm | 500*1000mm | 500*1000mm | 500*1000mm |
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD2727 |
| Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Module resoulution | 96*96dots | 84*84dots | 64*64dots | 52*52dots | 42*42dots |
| Cabinet Weight | 14kg/㎡ | 14kg/㎡ | 14kg/㎡ | 14kg/㎡ | 14kg/㎡ |
| Refresh Rate | ≥7680Hz | ≥7680Hz | ≥7680Hz | ≥7680Hz | ≥7680Hz |
| Gray scale | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 |
| Best Viewing Distance | 3~50m | 3~50m | 10~150m | 10~150 | 6~200 |
| Best Viewing Angle | 170`(W)120(H) | 170`(W)120(H) | 120`(W)120(H) | 120`(W)120`(H) | 120`(W)120`(H) |
| Lifetime | 100000h | 100000h | 100000h | 100000h | 100000h |
| Screen Signal | PAL/NTSC | PAL/NTSC | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Display Card | DVI display card | DVI display card | DVI display card | DVI display card | DVI display card |
| Working Voltage | AC220V±15％ / 110V±15％ | AC220V±15％ / 110V±15％ | AC220V±15％ / 110V±15％ | AC220V±15％ / 110V±15％ | AC220V±15％ / 110V±15％ |
| Brightness | ≥4500cd/m2 | ≥4500cd/m2 | ≥4500cd/m2 | ≥4500cd/m2 | ≥4500cd/m2 |
| Driver Way | 1/32 | /1/28 | /1/16 | /1/13 | /1/7 |
Outdoor Full Color LED Display
P2.6.4
250*250mm module size
500*1000mm cabinet size
P2.976
250*250mm module size
500*1000mm cabinet size
P3.91
250*250mm module size
500*1000mm cabinet size
P4.81
250*250mm module size
500*1000mm cabinet size
P5.95
250*250mm module size
500*1000mm cabinet size
Stunning Visual Performance
High Definition Image
Brilliant Image for Every Details
Vibrant Colors
Thanks to cutting-edge LED display technology and a well-developed design, the color reproduction of this outdoor LED wall display panel remains consistently high, enabling clear and lifelike image presentation.
Wider Viewing Angle

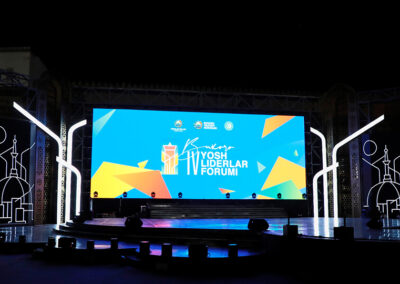

Outdoor Full Color LED Display Application
An outdoor full color LED display can be used for a wide range of venues. It serves as an outdoor fixed LED display wall for billboards or advertising in shopping malls or public squares, effectively attracting viewers’ attention. Additionally, it is a hit product in concert scenes or exhibitions, offering superior video and image display capabilities.
Secure Packing
Using flight case packaging for LED displays ensures collision prevention and enhanced durability, providing better protection during transportation. The considerate wheel design facilitates easy transportation between different venues.
Benefits to Buy LED Display from Us
As an LED display factory, we can offer you the most professional display screen products, a wide range of pixel module options, various types of cabinet selections, and the most cost-effective and practical solutions for your needs.
TOP DANCE provides quick delivery from our warehouse in the USA and have a 24-hour sales and after-sales team to offer comprehensive and detailed answers to any questions about LED displays.
FAQs
Are 1000B Series Outdoor Full Color LED Displays waterproof and dustproof?
Yes, this series of outdoor LED display is waterproof and dustproof, as it is designed to withstand various outdoor environments. Its better protective condition helps prevent potential harm that may occur.
Can 1000B Series Outdoor Full Color LED Displays be used in high-ambient light environments?
Yes, TP1000A Series Outdoor Full Color LED Displays can be used in high-ambient light environments. Because it needs to adapt to outdoor environments, this product is designed to withstand high ambient light conditions, ensuring clear image presentation.
