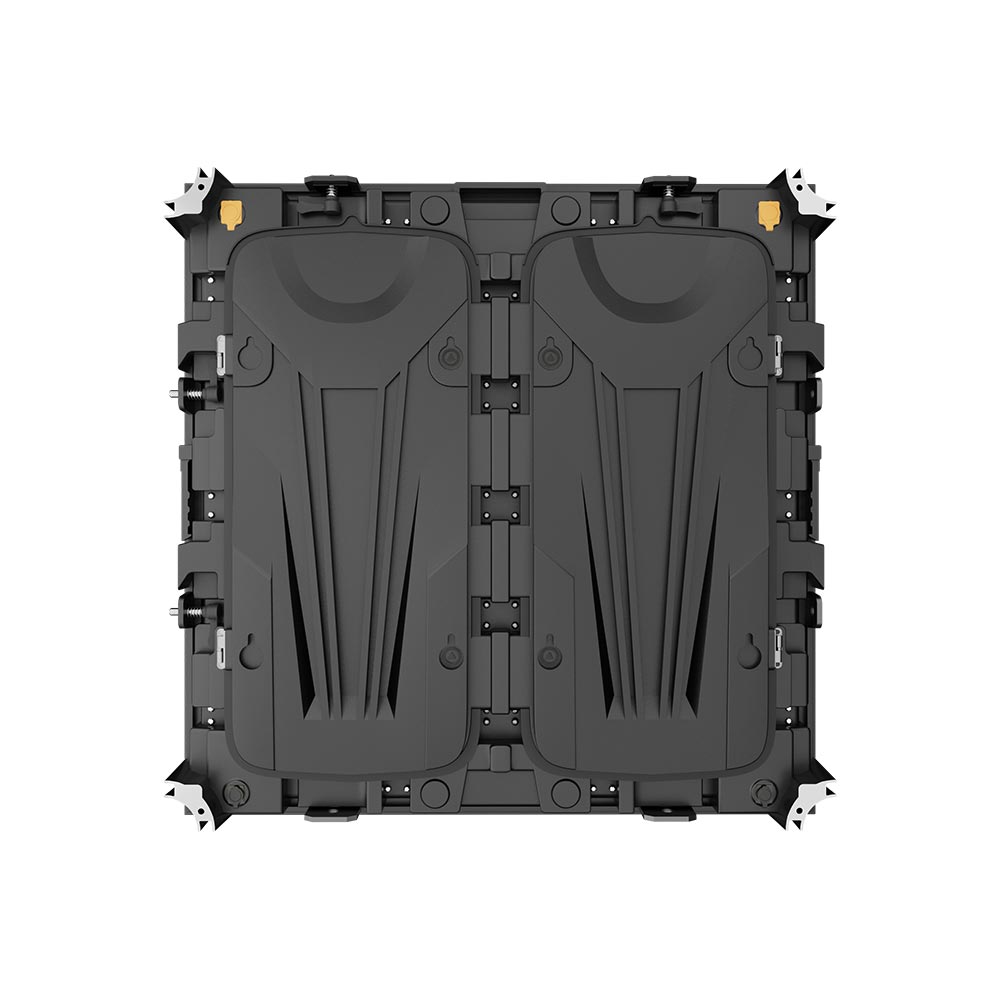

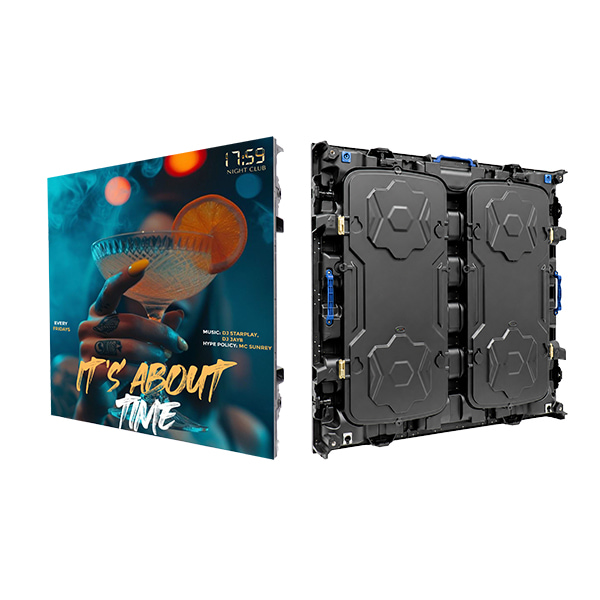

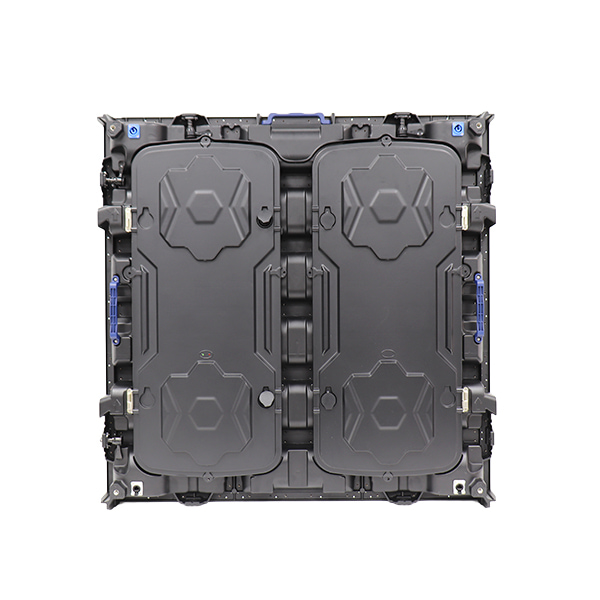

TP960R Series
Outdoor LED Panel Display
- 960*960mm LED Display Cabinet
- 100,000 Hours of Life Span
- Suitable for a Wide Variety of Modules
- Multiple Installation Modes, Applications
Outdoor LED Panel Display

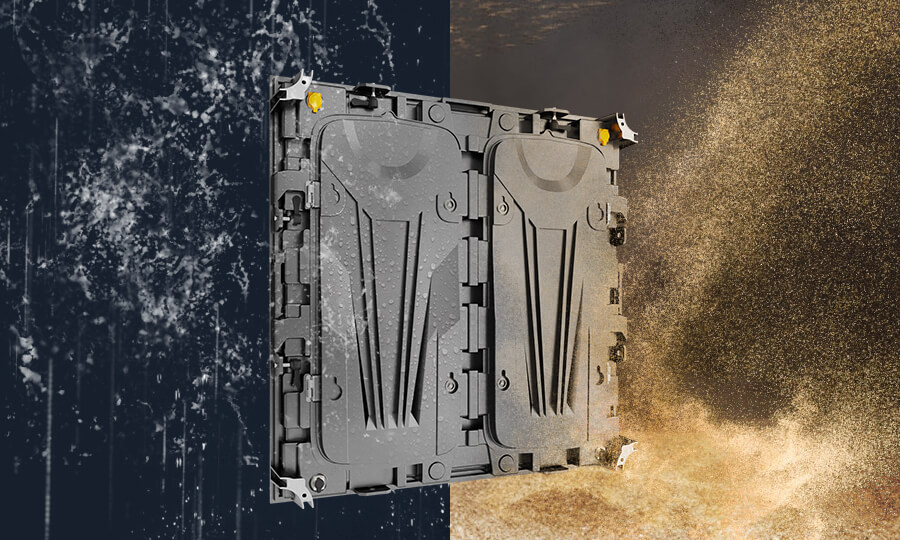

Better Protection Design

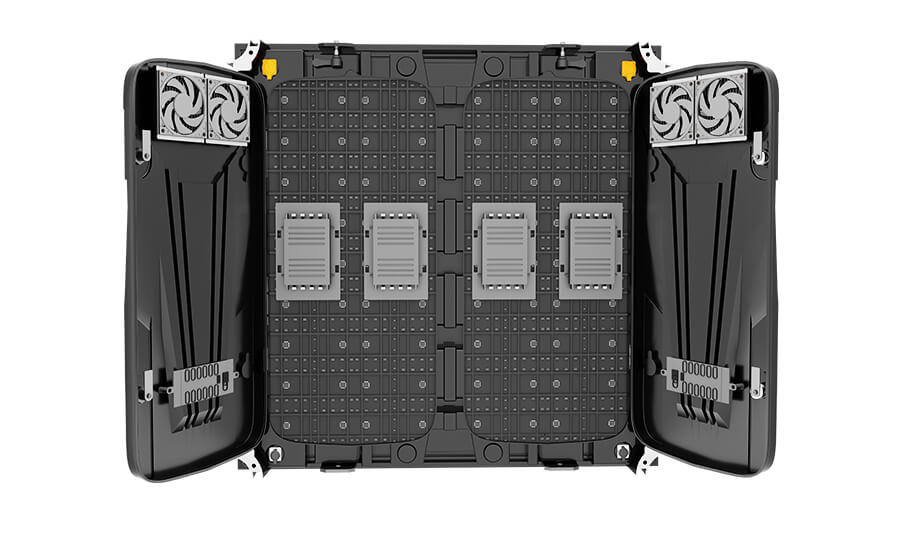

Quick Rear Maintenance
More efficient and rapid maintenance methods, along with a specialized post-maintenance design, enable you to swiftly resolve any issues or LED screen display problems during usage.

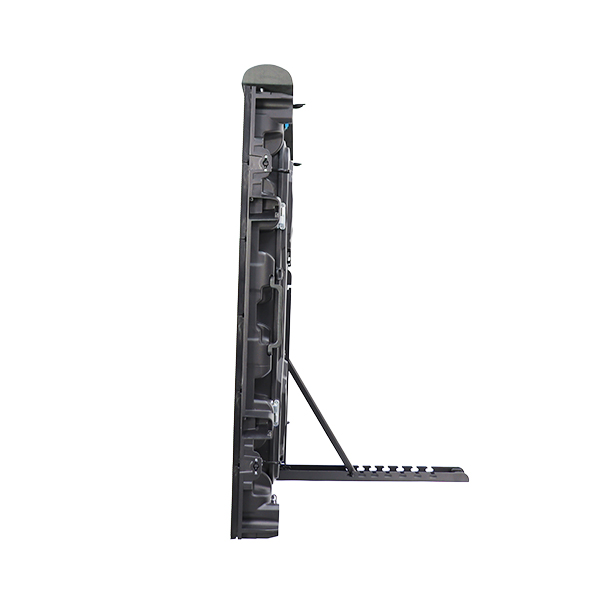

Multi Installation Mode
This outdoor LED display offers multiple installation modes and supports various mounting options. It can be installed in hanging or bracket installing manner and is also suitable for use as a football stadium LED display supported by brackets. The diverse installation options provide greater flexibility for its usage.
Specification
| Pixel pitch(mm) | P2.5 | P3.067 | P4 | P5 | P6.67 | P8 | P10 |
|---|---|---|---|---|---|---|---|
| Cabinet size | 960*960mm | 960*960mm | 960*960mm | 960*960mm | 960*960mm | 960*960mm | 960*960mm |
| LED Type | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2727 | SMD2727 | SMD2727 |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module resoulution | 128*64dots | 104*52dots | 80*40dots | 64*32dots | 48*24dots | 40*20dots | 32*16dots |
| Cabinet Weight | 26kg | 26kg | 26kg | 26kg | 26kg | 26kg | 26kg |
| Refresh Rate | ≥3840hz | ≥3840hz | ≥3840hz | ≥3840hz | ≥3840hz | ≥3840hz | ≥3840hz |
| Gray scale | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 |
| Best Viewing Distance | 2.5-25m | 3-30m | 4-40m | 5-50m | 6-60m | 8-80m | 10-100m |
| Best Viewing Angle | 140(W) 140(H) | 140(W) 140(H) | 140(W) 140(H) | 140(W) 140(H) | 140(W) 140(H) | 140(W) 140(H) | 140(W) 140(H) |
| Lifetime | 100000h | 100000h | 100000h | 100000h | 100000h | 100000h | 100000h |
| Screen Signal | PAL/NTSC | PAL/NTSC | PAL/NTSC | PAL/NTSC | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Display Card | DVI display card | DVI display card | DVI display card | DVI display card | DVI display card | DVI display card | DVI display card |
| Working Voltage | AC220V±15％ / 110V±15％ | AC220V±15％ / 110V±15％ | AC220V±15％ / 110V±15％ | AC220V±15％ / 110V±15％ | AC220V±15％ / 110V±15％ | AC220V±15％ / 110V±15％ | AC220V±15％ / 110V±15％ |
| Brightness | 5500-6500cd/㎡ | 5500-6500cd/㎡ | 5500-6500cd/㎡ | 5500-6500cd/㎡ | 5500-6500cd/㎡ | 5500-6500cd/㎡ | 5500-6500cd/㎡ |
| Driver Way | 1/16 | 1/13 | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
Outdoor LED Panel Display
P2.5
320*160mm module size
960*960mm cabinet size
P3.076
320*160mm module size
960*960mm cabinet size
P4
320*160mm module size
960*960mm cabinet size
P5
320*160mm module size
960*960mm cabinet size
P6.67
320*160mm module size
960*960mm cabinet size
P8
320*160mm module size
960*960mm cabinet size
P10
320*160mm module size
960*960mm cabinet size
Exquisite Visual Experience
High Clarity and Strong Visibility
As a committed LED display company, we guarantee to offer a competitive LED wall screen display outdoor. Our product supports high definition and excellent brightness, ensuring clear image performance and enhanced visibility in outdoor environment.
Smoother Video and Image Display
Clear and Visible Picture Details
Application Fields

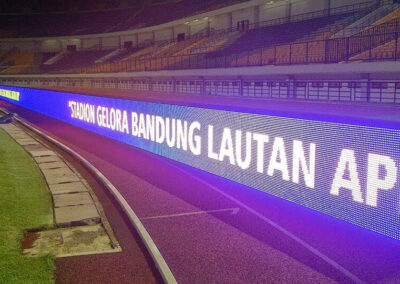

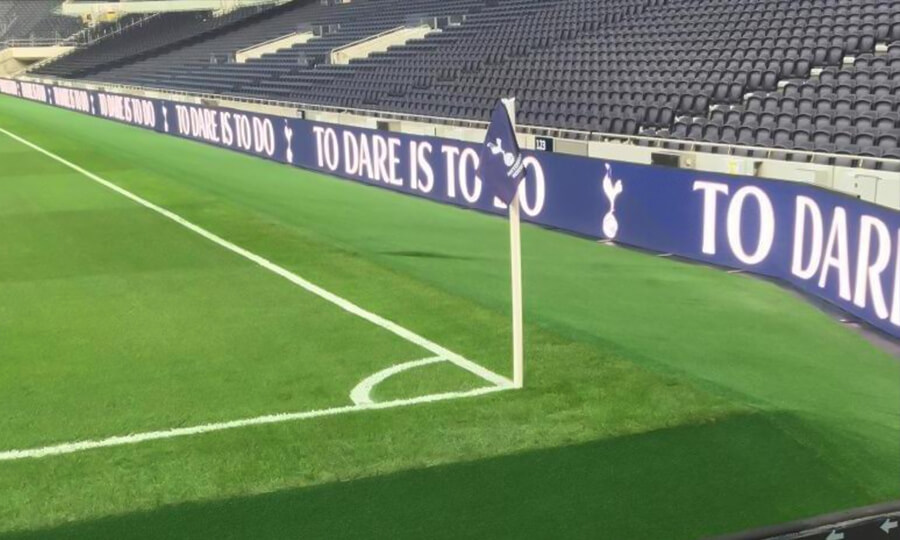

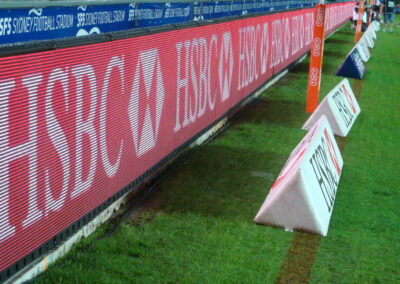

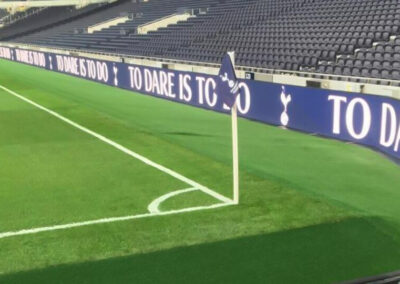

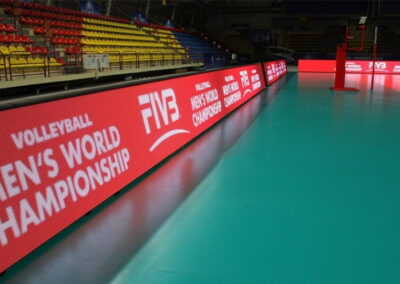

Thanks to its diverse installation options and various pixel LED display module choices, this product can be used in different types of outdoor venues. For instance, it can be used as outdoor advertising screens, background panels for events like weddings and outdoor events, or as LED display screens for football fields or other sports stadium. Its impressive visual appeal makes it ideal for capturing attention, showcasing essential information, or displaying advertisements.
Why Should You Buy Outdoor LED Panel Display from TOP DANCE?
We have been dedicated to the LED Display Industry for many years, providing high-quality LED display screens for sale. With advanced LED display technology, mature production craftsmanship, and a professional sales team, we assure you that we will present the most favorable and competitive LED display solutions for you.
We provide a warranty period of up to 2 years, ensuring you have a more reassuring buying experience. Our prompt after-sales service ensures immediate responses and comprehensive and attentive support, giving you an even better after-sales assurance.
